Liquid Belt Filter Presses Mining Gravity Dehydrator Sludge Solid Content

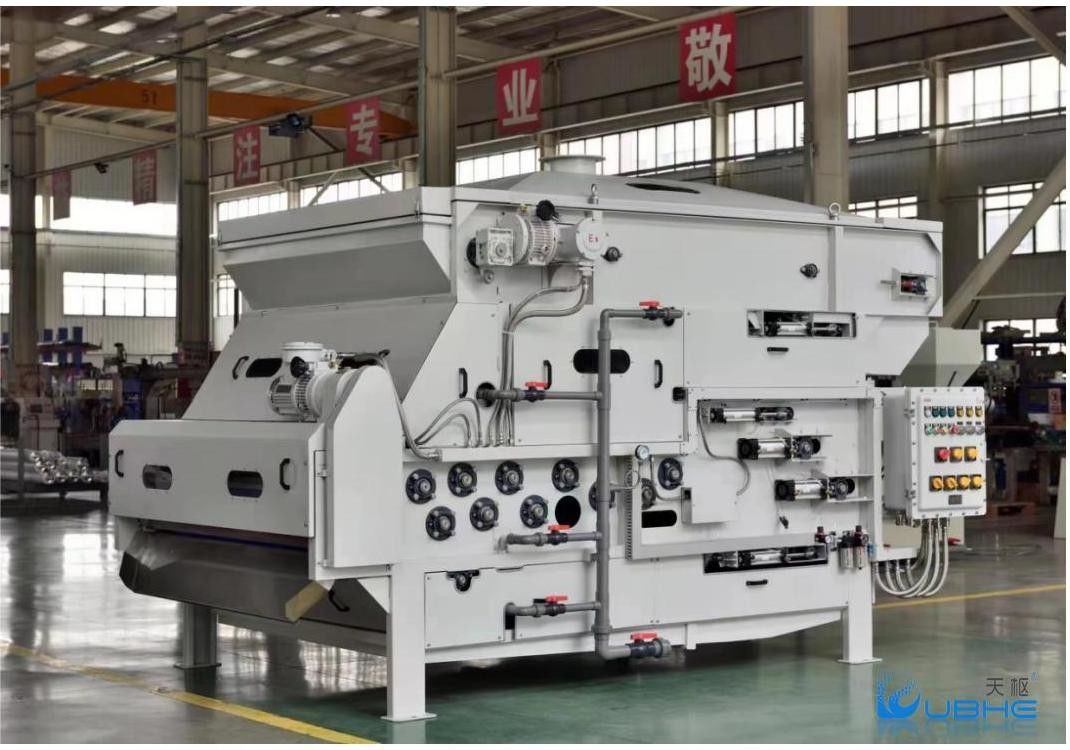

Three-filter Belt Gravity Dehydrator for Increasing Sludge Solid Content DTE3-3000

Industrial Belt Filter Press Solid Liquid Separation Processes-High-duty Type-Suitable for Low/Middle Consistency DTE3-3000

DESCRIPTION

The Three-Filter Belt Gravity Dehydrator is a specialized equipment used in sludge dewatering processes to increase the solid content of sludge by removing water. It employs a gravity-based filtration system with three filter belts to efficiently separate liquid from the sludge, resulting in a higher concentration of solids.

APPLICATION

The Three-Filter Belt Gravity Dehydrato has various applications in wastewater treatment plants, industrial facilities, and municipal sludge management systems. Its primary purpose is to increase the solid content of sludge by removing water, resulting in drier and more concentrated sludge.

Wastewater Treatment Plants: The product is commonly used in wastewater treatment plants to dewater sludge generated during the treatment process. It helps to reduce the volume of sludge for more efficient handling, transportation, and disposal. The dewatered sludge can be further treated or used for applications such as land application or incineration.

FEATURES

The Three-Filter Belt Gravity Dehydrator offers several notable features that contribute to its effectiveness in increasing the solid content of sludge

1. Gravity-Based Filtration: The product utilizes a gravity-driven filtration system, which allows for efficient separation of water from sludge solids. Gravity helps to facilitate the drainage of water through the filter belts, resulting in drier sludge with higher solid content.

2. Adjustable Belt Tensioning System: The product incorporates an adjustable belt tensioning system, ensuring optimal belt performance and alignment. Proper belt tensioning helps to maintain the integrity of the filtration process and enhances the efficiency of dewatering operations.

BENEFITS

Belt Position Correcting System

■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and delicate finishing process, thus featuring a compact structure and ultra-high strength.

■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

How Our Belt Filter Press Works

- A large amount of free water is separated by gravity, and then the slurry solids are formed.

- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.

- It is extruded step by step to maximize the separation of sludge and water.

- At last, the filter cake is formed and discharged.

Technical Data & External Dimensions of Belt Filter Press

   Remark:
  1. Our company will reserve the modifying right of the above specifications.
  2. Treating capacity and the water content rate depend on the slurry feature

  3. Please ask for the actual installation dimension before ordering.

Allocation Schema for Peripheral Equipment

The Reference Treating Data Sheet of The Major Waste Slurry

Welcome To DUBHE

Q1: What's the MOQ?
A: The MOQ is one set.
Q2: Do you have an inspection report for the material?
A: We can provide you with the relative certificates
Q3: Do you have any MOQ limit?
A: As our machine is very large, the minimum purchase quantity is one.

Q7: Can we visit your company and factory?

A: Sure, if you can visit the factory, we will have relevant personnel to explain the products to you.
