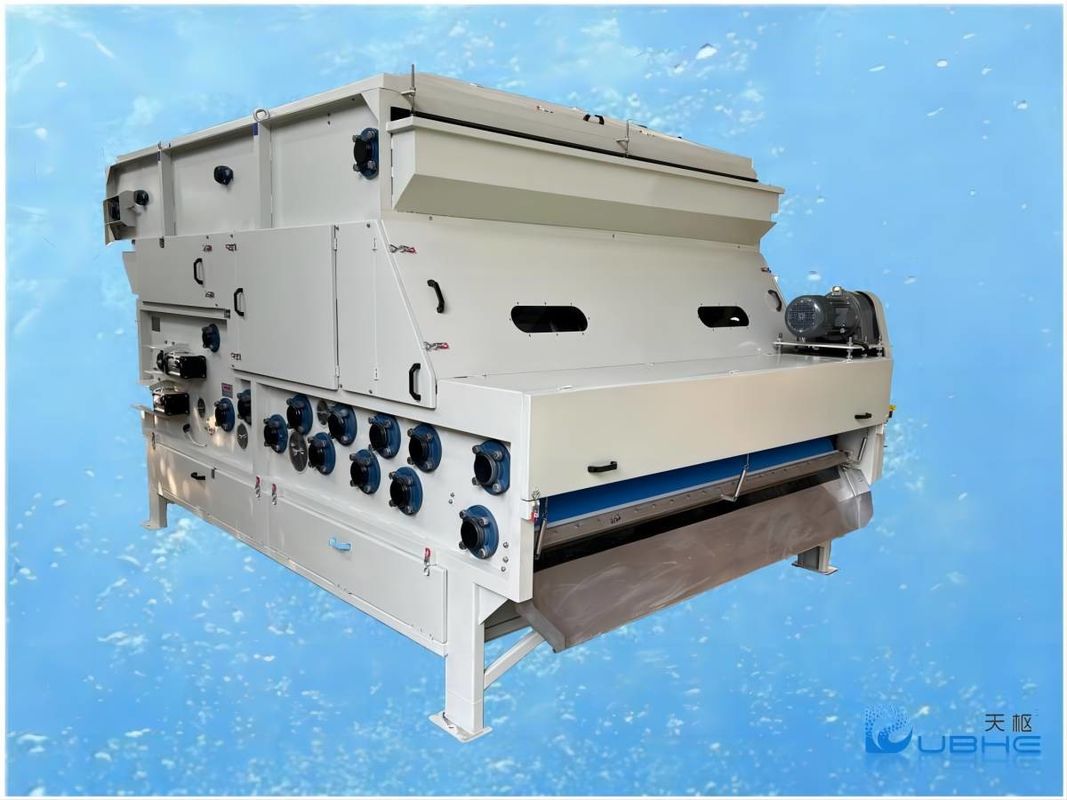

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated

conveyor belt press machine

dewatering belt

belt press dewatering

Place of Origin:

CHINA

Brand Name:

DUBHE

Model Number:

DTB3-1000

Contact Us

Request A Quote
Product Details
Features:
Continuous Auto Running;
Product Name:
Three Filter Belt Gravity Belt Standard Type
Belt Width (mm):
1000
Treating Capacity (m3 /hr):
14.2~25.0
Water Content Rate (%):
65~84
Weight(kg):
1830
Application:
Dewatering Municipal And Industrial Sludge
Material:
Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1Set
Payment Terms
L/C, T/T
Product Description

Concentration and Dehydration Integrated Machine with Three Filter Belts for Industrial Use DTB3-1000



Industrial Belt Filter Press Solid Liquid Separation Processes-Standard Type-Suitable for Low/Middle Consistency

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Description

The product is advanced equipment designed for efficient sludge concentration and dehydration in industrial applications. Here is a description:

1. Three Filter Belts: The product is equipped with three filter belts arranged in a loop configuration. These belts effectively filter the sludge as it passes through the machine, allowing for enhanced separation of liquid and solid components.

2. Concentration and Dehydration: This integrated machine combines the processes of sludge concentration and dehydration into a single operation. It efficiently removes water from the sludge, resulting in a highly concentrated and dewatered sludge cake.

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Application

1. The sludge dewatering of the various industrial wastewater treatment plants.

2. The sludge dewatering of the butchery, livestock, etc.

3. The sludge dewatering of the city sewer, excretion, water purifying, etc. Sewage treatment plants.

4. Solid and liquid separate under processing for the food & beverage, chemical industry, mine, etc.

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Features

The Concentration and Dehydration Integrated Machine with Three Filter Belts for Industrial Use offers several key features that make it a reliable and efficient solution for sludge concentration and dehydration. Here are the notable features of the product:

1. Three Filter Belts: The product is equipped with three filter belts arranged in parallel. This configuration increases the filtration area and enhances the processing capacity, allowing for the efficient separation of solids and liquids in the sludge.

2. High Processing Capacity: With its three filter belts and optimized design, the product can handle large volumes of sludge, making it suitable for industrial applications with high sludge treatment demands. It offers a high processing capacity, ensuring efficient and continuous operation.

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 3

















Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Benefits:

Continuous auto running;

Low power consumption, the longevity of service;

Easy to manage, easy to maintain;

Low noise, low consumption of PAM dosage ;

Economical, reliable, and wide application.

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Belt Position Correcting System

This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.

■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and delicate finishing process, thus featuring a compact structure and ultra-high strength.

■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0How Our Belt Filter Press Works

- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.

- A large amount of free water is separated by gravity, and then the slurry solids are formed.

- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.

- It is extruded step by step to maximize the separation of sludge and water.

- At last, the filter cake is formed and discharged.

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 7

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Technical Data & External Dimensions of Belt Filter Press

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 9

   Remark:
   1. Our company will reserve the modifying right of the above specifications.
   2. Treating capacity and the water content rate depend on the slurry feature

   3. Please ask for the actual installation dimension before ordering.

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Allocation Schema for Peripheral Equipment



Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 11

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0The Reference Treating Data Sheet of The Major Waste Slurry

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 13

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 0Welcome to DUBHE

 Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 15 Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 16 Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 17

Conveyor Belt Press Machine Dewatering Concentration Dehydration Integrated 18

Q1: How to pay?

A: 100%T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance.

Q2: What's the delivery time?

A: 30-60 days.

Q3: What's the MOQ?

A: 1 set.

Q4: Can you accept mixed batches of different products?

A: We can accept the mixing of different equipment.
