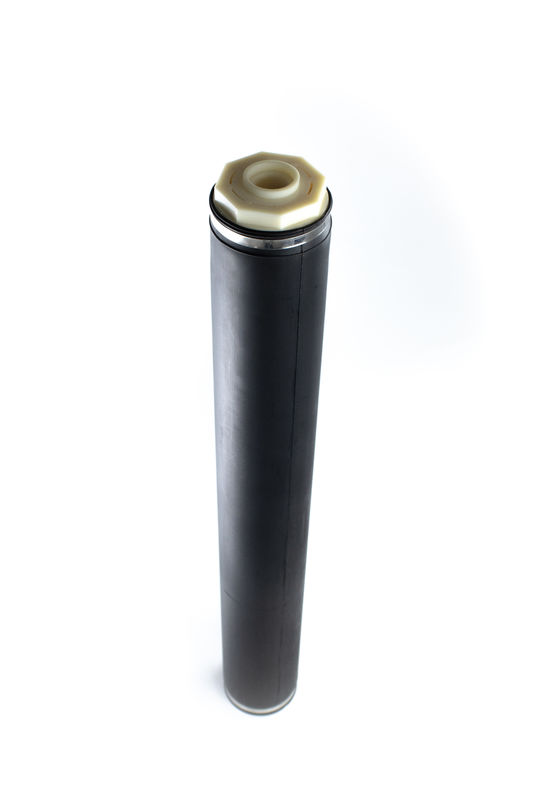

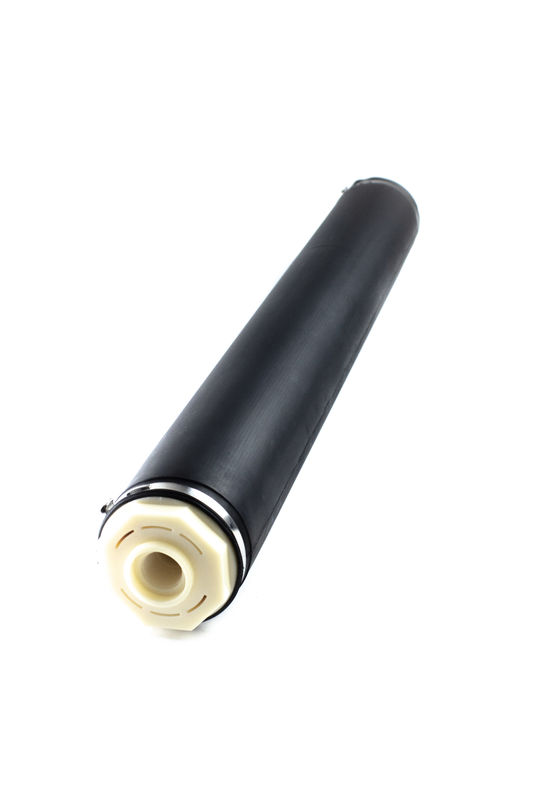

High Efficiency SSI Aeration Tube With Low Plasticizer Content

High Efficiency SSI Aeration Tube With Low Plasticizer Content

Low Plasticizer Content Tube Type Diffuser

High Efficiency SSI Aeration Tube

Tube Type SSI Aeration Tube

Place of Origin:

South Korea

Brand Name:

SSI

Certification:

ISO

Model Number:

AFT-3inch-E

Contact Us

Request A Quote
Product Details
Color:
Black
Material:
EPDM
Tube Length:
1000mm
Tube Diameter:
2.6''/3.7''
Connection Type:
Saddle/Nipple
Service LIfe:
≥5years
Payment & Shipping Terms
Product Description

High Efficiency SSI Aeration Tube With Low Plasticizer Content 0DESCRIPTION

High Efficiency SSI Aeration Tube With Low Plasticizer Content 1 Industry Standard Size and Shape. Membranes are interchangeable with other manufacturers.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 2 Experienced Engineering and Drafting staff with years of practice to assist you.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 3 Simple and quick installation with Snappy SaddlermMount, which can be done by one person.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 4 212 F(100℃) temperature resistance and environmentally friendly high-temperature ABS body.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 5 SSI membranes with individual thermocouples in each cavity = 100% quality control.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 6 Each membrane was checked for even perforation depth to ensure uniform air release.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 7 Low membrane plasticizer content to reduce shrinkage and hardening, but enough to avoid creep.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 8 Multiple integral check valves keep your aeration piping system clean.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 9 21st-century special materials such as PTFE and EPDM for outstanding chemical of fouling resistance, or for the highest oxygen transfer efficiency at an acceptable headloss.



High Efficiency SSI Aeration Tube With Low Plasticizer Content 10

High Efficiency SSI Aeration Tube With Low Plasticizer Content 0ADVANTAGES

  • Tubes feature a channel-style body to reduce strain on the membranes, particularly in on/off operation.
  • Diameter 2"(62 m m) an d 3" (90 m m).
  • Saddle connection for 4" pipe to reduce installation time, also available with 3.4!NPT connection.
  • High Efficiency (SOTE) and low pressure drops tested according to ASCE standards.
  • ABS body temperature resistant up to 100℃.
  • Membrane with low plasticizer content to reduce shrinkage and loss of elasticity.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 0Installation Method

SSI tube aerator can be installed on PVC or stainless branch pipe through Saddle connection, Nipple connection, etc



High Efficiency SSI Aeration Tube With Low Plasticizer Content 13

                                                        Nipple connection

High Efficiency SSI Aeration Tube With Low Plasticizer Content 14High Efficiency SSI Aeration Tube With Low Plasticizer Content 15

                                                          Saddle Connection



High Efficiency SSI Aeration Tube With Low Plasticizer Content 0Reference Data

High Efficiency SSI Aeration Tube With Low Plasticizer Content 17



High Efficiency SSI Aeration Tube With Low Plasticizer Content 18

Remark: We MANUFACTURE OUR DISC DIFFUSERS WITH DIFFERENT TYPE MEMBRANES.

STANDARD MATERIALS ARE EPDM AND FLUOROELA STOMER LAYERED EPDM.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 0Unique System Strength

Comprehensive design service and after-sales support
SSI provides full design services, including biological and mixing calculations, process simulations and
hydraulic studies. We maintain a full drafting department with 3D and animation capabilities and we can
assist with specifications and CAD drawings. Our service and installation crew can hold your hand during
the early stages of the project and our worldwide multilingual staff is dedicated to your complete
satisfaction.

High Efficiency SSI Aeration Tube With Low Plasticizer Content 20

Q: Do you have any MOQ limit?
A: YES
Q: Can you print our logo on the outer package?
A: Yes
Q: Can we visit your company and factory?
A: Yes, you can
Q: Can you accept mixed batches of different products?
A: Yes.
