Name: 70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life
Brand: SSI
SKU: ECT-P
Rating: 4.5 (163 reviews)

Home > products > SSI Aeration Diffusers >

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life

70mm Diameter Tube Type Diffuser

Tube Type Air Diffuser 1000mm

PVC Tube Type Diffuser

Place of Origin:

South Korea

Brand Name:

SSI

Certification:

ISO

Model Number:

ECT-P

Request A Quote

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life

Product Details

Color:

White

Material:

PTFE

Tube Length:

1000mm

Tube Diameter:

70mm

Connection Type:

PVC Or Stainless Steels Tube

Service LIfe:

≥5years

Payment & Shipping Terms

Coarse Bubble Diffuser With 10*5mm Hole

Get Best Price

WWTP / ETP SSI Coarse Bubble Air Diffuser For Effluent Treatment

Get Best Price

EPDM Membrane Coarse Bubble Diffuser For Aeration In Wastewater Treatment

Get Best Price

Optimal Coarse Bubble Diffuser For Aeration In Wastewater Treatment

Get Best Price

86-021-80510158

shdubhe@gmail.com

Contact Now

Product Description

DESCRIPTION

Why choose the ECT Diffuser?

SSI developed the ECT tube diffuser to bring a quality tube diffuser at an affordable price to the wastewater market. In low airflow rates, the bottom part of a conventional 360 diffuser is inactive. The ECT diffuser functions similarly to a panel diffuser resulting in a higher SOTE rate.

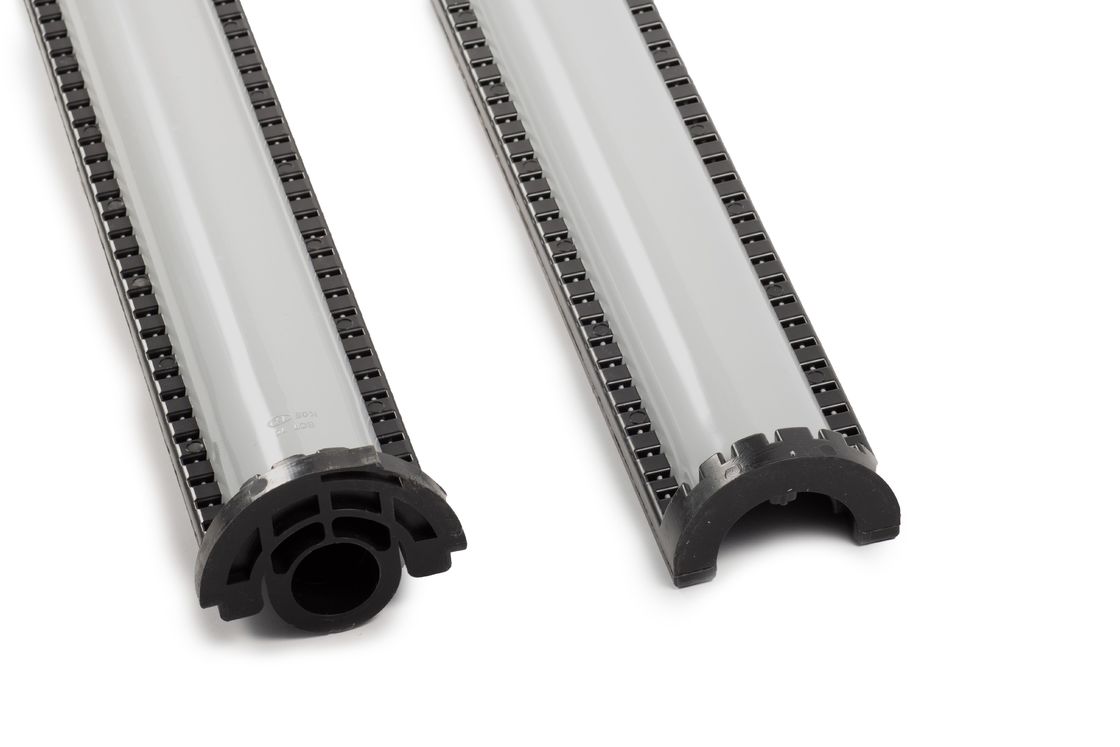

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life 1

ADVANTAGES

Single mold technology to reduce costs.

Revolutionary"half moon" shape to reduce the coalescence phenomenon typical of tubular diffusers.

High efficiencies (SOTE up to 8% / m) and reduced pressure drops tested according to ASCE standards.

High resistance"environmentally friendly polypropylene body (100℃).

Membrane with low content of plasticizers to reduce shrinkage and loss of elasticity.

Connects with 3/4" F NPT connection or 4" saddle (set).

Cost-effective solution to replace traditional tubes.

Installation Method

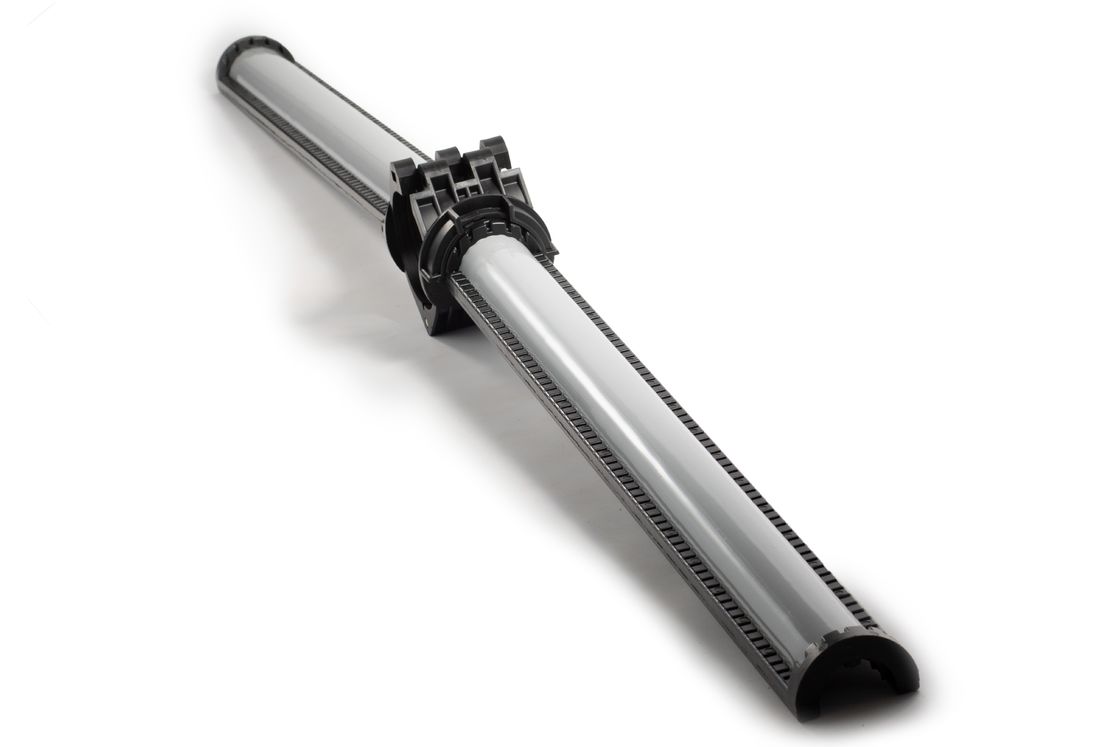

ECT Tube Aerators can be mounted on PVC or stainless steel stubs with a proprietary saddle connection.

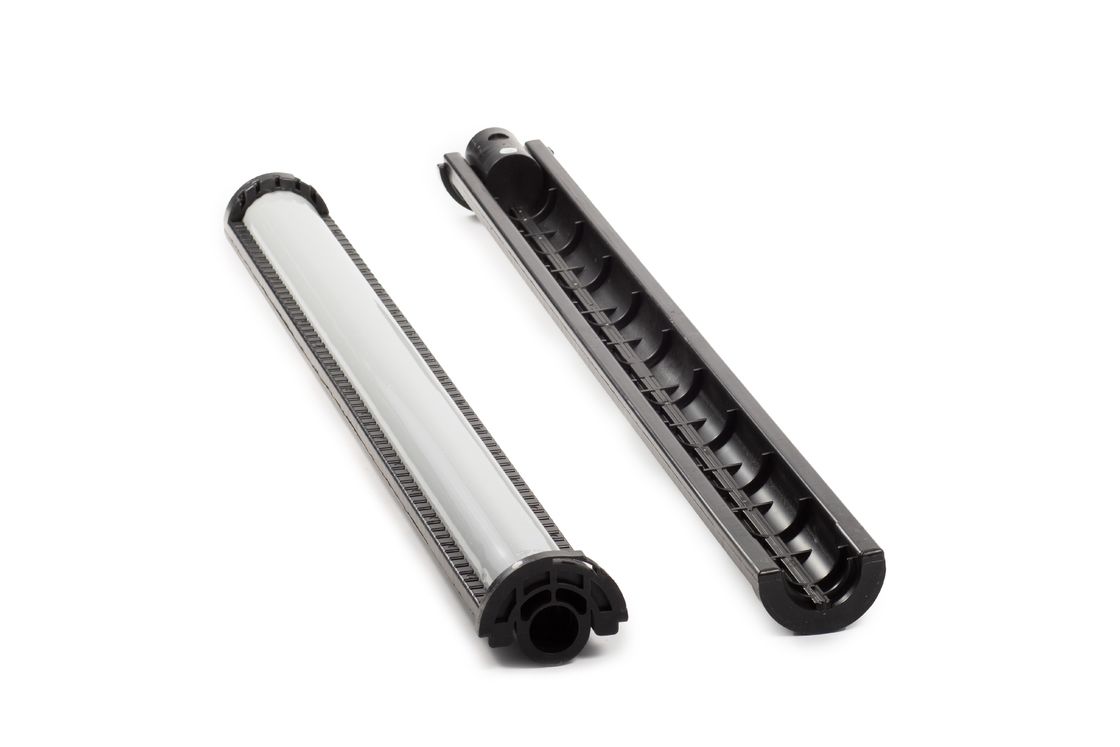

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life 4

Reference Data

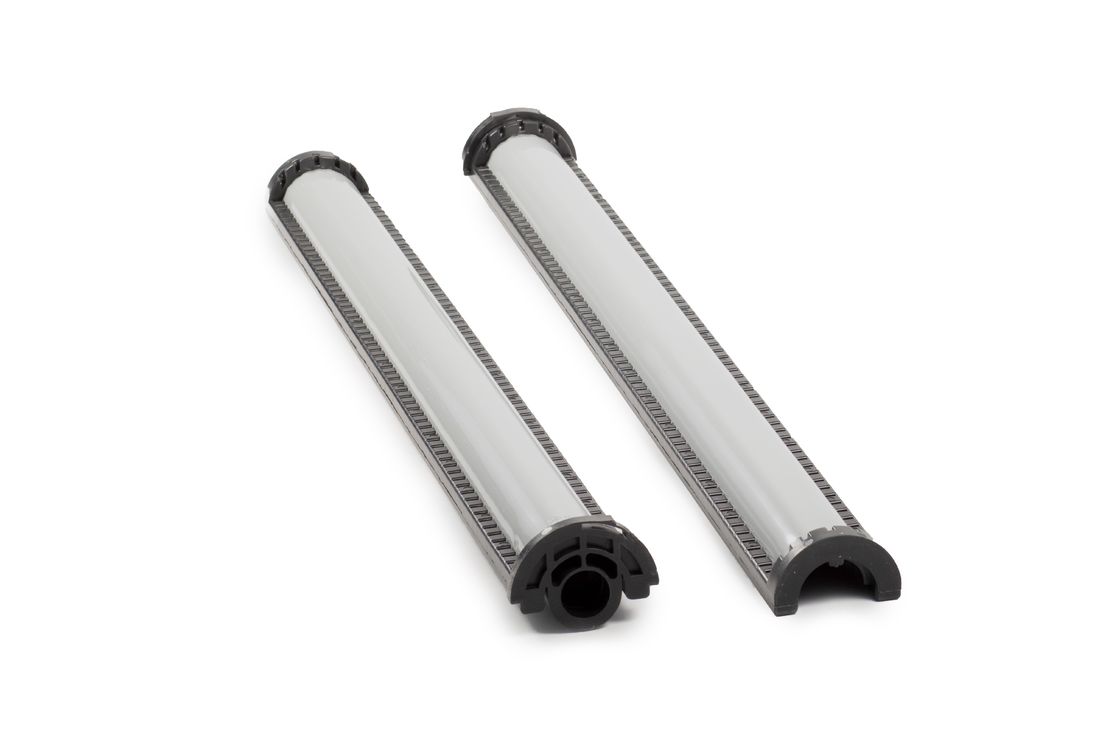

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life 7

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life 8

On the left a standard tubular diffuser where the coalescence bubbles at the bottom, reduces the overall efficiency.On the right, the new ECT70 which guarantees maximum efficiency.

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life 9

Unique System Strength

Patented PTFE membranes prolong efficiency and reduce whole-life costs

SSI’s patented PTFE membrane barrier properties not only reduce plasticizer extraction, shrinking, and membrane hardening but also limit dynamic

changes that can result from swell, such as creep. Compared with uncoated products that are more susceptible to increases in DWP due to

more aggressive fouling and changes in physical properties and weight, the PTFE-coated membrane improves the consistency of DWP (Headloss)

values over the product's life. This directly impacts long-term power costs and the ability of the system to distribute air uniformly across the tank floor.

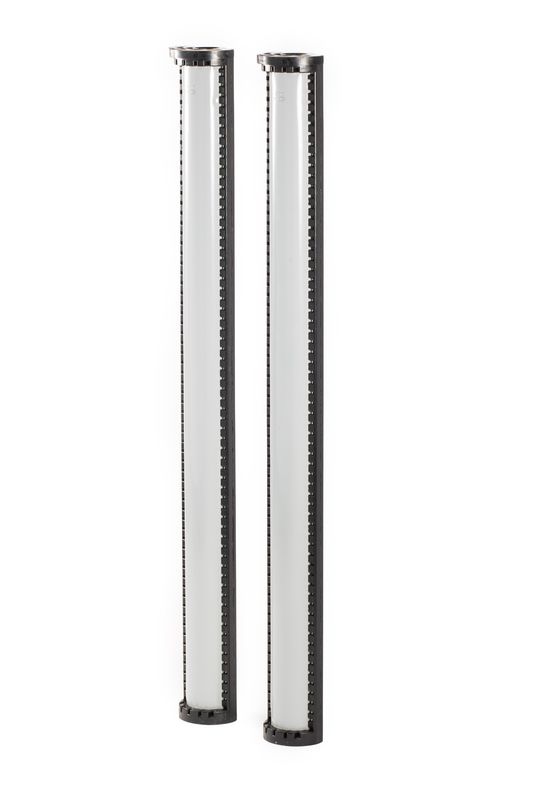

70mm Diameter Tube Type Diffuser Channel Style Support Longer Membrane Life 11

Q: Do you have any MOQ limit?
A: YES
Q: Can you print our logo on the outer package?
A: Yes
Q: Can we visit your company and factory?
A: Yes, you can
Q: Can you accept mixed batches of different products?
A: Yes.
