1/2mm Hole Size Tube Type Diffuser For 0.22m2 Active Surface Area And 1-2mm Bubble Size

1/2mm Hole Size Tube Type Diffuser For 0.22m2 Active Surface Area And 1-2mm Bubble Size

0.22m2 Tube Type Diffuser

PTFE Tube Type Diffuser

2mm Tube Type Diffuser

Place of Origin:

Korea

Brand Name:

DUBHE

Certification:

ISO

Model Number:

AFT-E

Contact Us

Request A Quote
Product Details
Bubble Size(mm):
1~2
Membrane Thickness(mm):
2
Material:
EPDM/PTFE
Active Surface Area(㎡):
0.15/0.22
Hole Size(mm):
1/2
Drag Loss(pa):
1285~4100
Payment & Shipping Terms
Product Description

Product Description:

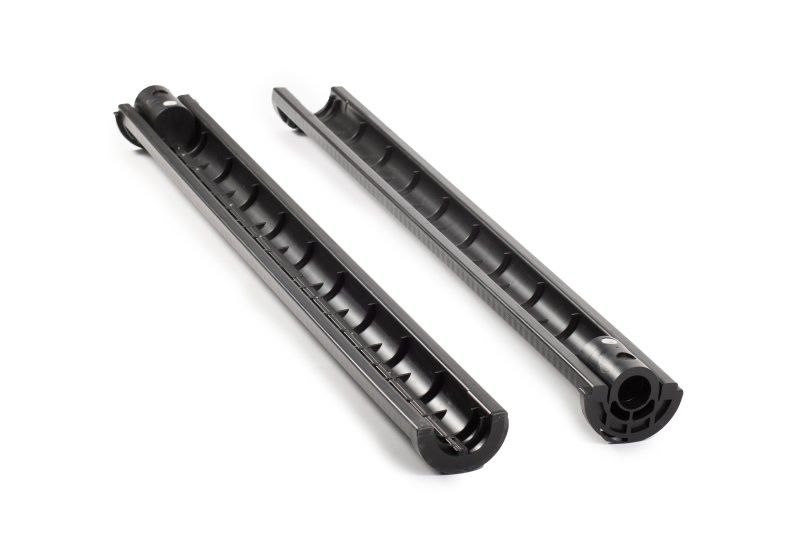

Product Overview: Tube Type Diffuser

Tube Type Diffuser is a type of diffuser tube used in water treatment systems. It is designed to evenly distribute fine bubbles into water to increase oxygen levels and promote water aeration. This improves water quality and helps maintain a healthy aquatic environment.

The Tube Type Diffuser is made of high-quality materials, ensuring durability and long-lasting performance. The product is available in two variations: EPDM and PTFE.

Product Attributes:
  • Tube Diffuser: The main component of the product, it is a tube-shaped device used to diffuse bubbles into water.
  • Membrane: The membrane of the Tube Type Diffuser is responsible for creating fine bubbles. It is made of high-quality material to ensure efficient oxygen transfer and durability.
  • Thickness: The membrane thickness of the Tube Type Diffuser is 2 mm, providing optimal performance and durability.
  • Hole Size: The hole size of the diffuser is 1/2 mm, ensuring that fine bubbles are evenly distributed into the water.
  • Active Surface Area: The active surface area of the Tube Type Diffuser is 0.15/0.22㎡, allowing for efficient oxygen transfer and water aeration.
  • Bubble Size: The Tube Type Diffuser produces bubbles with a size range of 1-2 mm, ideal for promoting water aeration and oxygen transfer.
  • Material: The product is available in two materials: EPDM and PTFE. EPDM offers excellent resistance to chemicals and UV exposure, while PTFE provides superior durability and resistance to wear and tear.

Overall, the Tube Type Diffuser is a reliable and high-performing product that is essential for maintaining a healthy aquatic environment. Its durable construction, efficient oxygen transfer, and bubble size make it a top choice for water treatment systems.

1/2mm Hole Size Tube Type Diffuser For 0.22m2 Active Surface Area And 1-2mm Bubble Size 0

Features:

  • Product Name: Tube Type Diffuser
  • Membrane Thickness(mm): 2
  • Bubble Size(mm): 1~2
  • Material: EPDM/PTFE
  • Hole Size(mm): 1/2
  • Active Surface Area(㎡): 0.15/0.22
  • Tube Diffuser
  • Diffuser Tube
  • Tube Aeration Diffuser
  • EPDM Tube Diffuser
  • PTFE Tube Diffuser


Technical Parameters:

TUBE TYPE DIFFUSER
Product Name Tube Aeration Diffuser
Other Names Diffuser Tube, Diffuser Tube Type
Hole Size (mm) 1/2
Drag Loss (pa) 1285~4100
Membrane Thickness (mm) 2
Bubble Size (mm) 1~2
Active Surface Area (㎡) 0.15/0.22
Material EPDM/PTFE


Applications:

Tube Type Diffuser - DUBHE


DUBHE's Tube Type Diffuser is a high-quality product designed for effective wastewater treatment and water aeration. It is suitable for various applications in industries such as municipal, industrial, and agricultural water treatment.

Product Description

The Tube Type Diffuser, also known as the diffuser tube, air diffuser tube, or bubble diffuser, is made of EPDM/PTFE membrane, which ensures durability and long-lasting performance. It has a low drag loss of 1285~4100 pa, making it highly efficient in delivering fine bubble aeration.

Application

The Tube Type Diffuser is widely used in wastewater treatment plants, aquaculture, and other water treatment facilities. It is ideal for applications that require high oxygen transfer efficiency, low energy consumption, and low maintenance costs.

Features
Brand Name: DUBHE
Model Number: AFT
Place of Origin: Korea
Material: EPDM/PTFE
Drag Loss (pa): 1285~4100
Hole Size (mm): 1/2
Membrane Thickness (mm): 2
Active Surface Area (㎡): 0.15/0.22

The Tube Type Diffuser by DUBHE is an excellent choice for any water treatment application that requires high-quality, low maintenance, and efficient aeration. Its advanced EPDM/PTFE membrane material, combined with a low drag loss and high active surface area, makes it a top-performing product in the market.



Customization:

Tube Type Diffuser Customized Service
Brand Name: DUBHE
Model Number: AFT
Place of Origin: Korea
  • Air Diffuser Tube
  • Aeration Diffuser
  • Diffuser Tube

Our Tube Type Diffuser, AFT, is designed and manufactured in Korea by DUBHE. With our advanced technology and expertise, we offer customized services to meet the specific needs of our clients.

Key Product Attributes:
  • Drag Loss(pa): 1285~4100
  • Bubble Size(mm): 1~2
  • Hole Size(mm): 1/2
  • Membrane Thickness(mm): 2
  • Material: EPDM/PTFE

Our Tube Type Diffuser, AFT, is made with high-quality EPDM or PTFE material, ensuring durability and long-lasting performance. The membrane thickness of 2mm guarantees optimal diffusion of air.

Customized Services:

At DUBHE, we understand that each project may have unique requirements. That's why we offer customized services to meet the specific needs of our clients. Our team of experts will work closely with you to design and manufacture a Tube Type Diffuser that meets your exact specifications.



Packing and Shipping:

.
