WWTP / ETP SSI Coarse Bubble Air Diffuser ISO

WWTP coarse bubble air diffuser

ETP coarse bubble air diffuser

ISO coarse bubble diffusers wastewater

Place of Origin:

South Korea

Brand Name:

SSI Aeration

Certification:

ISO

Model Number:

AFC-75

Request A Quote

WWTP / ETP SSI Coarse Bubble Air Diffuser ISO

Product Details

Membrane:

EPDM

Diffuser Body:

Acetyl

Active Surface Area:

13.8544in2

Hole Quantity:

10*5mm

Design Flow (Sm³/hr):

7-10

Application:

WWTP / ETP

Payment & Shipping Terms

Specific Gravity and 5-15 Days Membrane Hanging Time for MBBR In Wastewater Treatment

Get Best Price

Coarse bubble diffuser

Get Best Price

Efficient & Durable SSI ECD500 Disc Diffuser System for Municipal & Industrial

Get Best Price

Disc Type Diffuser The Ultimate Air Distribution Solution For Your Business

Get Best Price

86-021-80510158

shdubhe@gmail.com

Contact Now

Product Description

INTRODUCE

Name: WWTP / ETP SSI Coarse Bubble Air Diffuser ISO
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: AFC-75
Availability: InStock

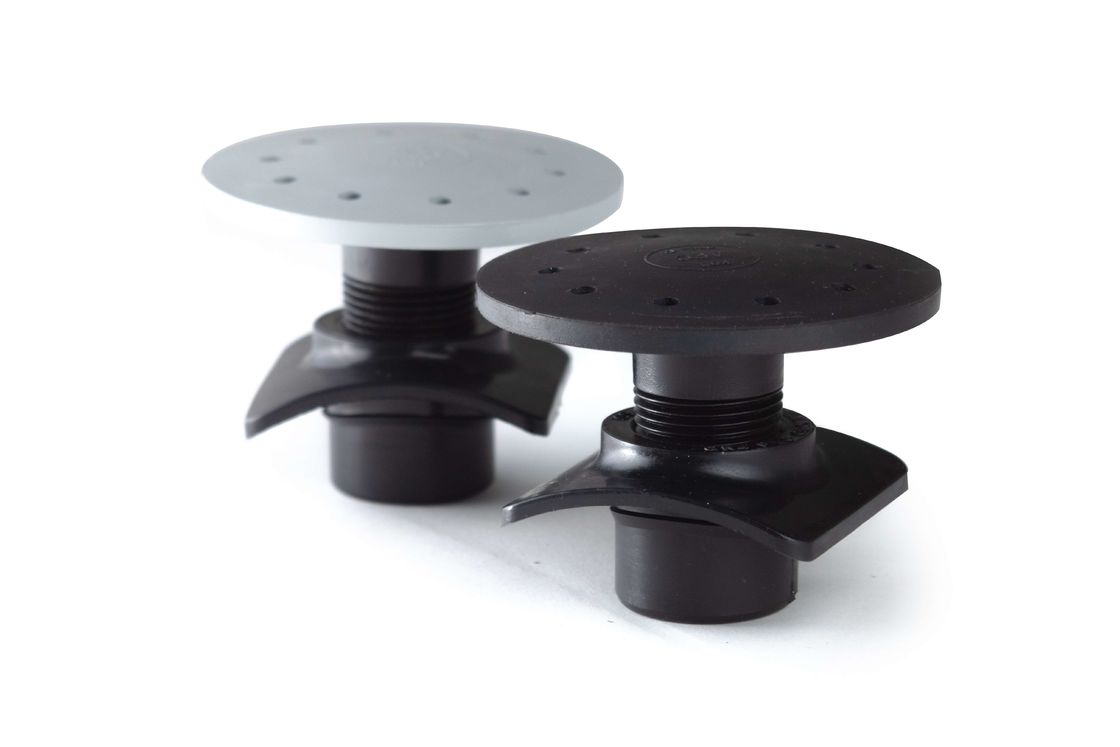

Caps are most commonly used in aerobic digesters and equalization tanks where high rate oxygen transfer efficiency is not required, They are manufactured from black Acetyl plastic containing UV protection and membranes are made from the same EPDM compound that SSI uses in fine bubble disc diffusers. Caps have a3/4" MNPT thread. SSI's Cap diffuser is a non-clog design and operates well under intermittent and continuous conditions. A typical piping system utilizing SSI AFC75diffusers is made from PVC, CPVC or Stainless Steel pipe, with Grommets, Drilled and Tapped pipe, or welded¾"FNPT SS bosses to the top center line.

WWTP / ETP SSI Coarse Bubble Air Diffuser ISO 0

Unique System Strengths

SSI manufactures disc diffusers and coarse bubble diffusers, and we mount these products on a wide range of piping materials including PVC, CPVC, PP and Stainless Steel. We have the ability to attach diffusers to pipe using saddles, grommets, or pre-assembled PODS. We can provide retrievable systems or fixed grids, and systems in kit form or mostly factory assembled. We try to understand and anticipate your needs, and fit our recommendations to your situation.

PARAMETER

WWTP / ETP SSI Coarse Bubble Air Diffuser ISO 1

Avg Operating Condition per Diffuser

曝气器的工作条件

Peak Air Flow per Diffuser曝气器的峰值气流

Orifice Size孔径

Slit Qty

分割数量

Active Surface Area per Diffuser

曝气器有效面积

Weight per Diffuser ECD215

ECD215曝气器的重量

0.3-1.5SCFM

WWTP / ETP SSI Coarse Bubble Air Diffuser ISO 2 0.5-2.5 Sm³/hr

2.5 SCFM 4.25Sm³/hr

0.157′′ 4.0 mm

+/-4,155

0.30ft²

20.02 ㎡

0.81lbs

0.37 kg
